Rugged construction vibration and drop tested to 1 meter.Long battery life, 1,500 tests (typical) from 2 AA alkaline batteries.Optional LC, ST and FT interchangeable adapters are available.Key information visible on a large display power loss in db and distance in meters or feet.

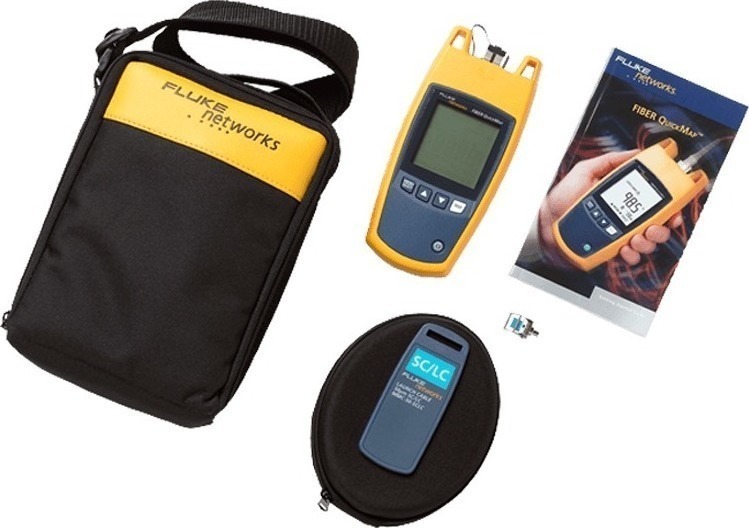

FLUKE QUICKMAP PRO
Measure and locate high loss connections and breaksįeatures common to both Fiber OneShot PRO and Fiber QuickMap.
Locate severe bends, high-loss splices, breaks and dirty connectors in singlemode fiber Measure and locate high-loss splicesįind potential sources of high bit error rates caused by reflectance from dirty or poor connections Measure up to 4,921 feet (1,500 metres) of fiber in seconds Locate the end of a fiber Backlighted display turns off automaticallyĩ/125µm and 62.5/125 µm 850 nm output wavelength
Change the Index of Refraction (IOR) to improve fiber length accuracy. Six-second test time-no more blind troubleshooting that can waste hours Connect your fiber and press the Test button. Detects live optical signals before it begins testing. Find potential sources of high bit error rates caused by reflectance from dirty or poor connections. Locate severe bends, high-loss splices, breaks and dirty connectors in singlemode fiber. Measure up to 4,921 feet (1,500 metres) of fiber in seconds 61010.1.NOTE: Fluke Network lead times can vary due to component and supply issues. Listed by the Canadian Standards Association CSA C22.2 No. +7 dB maximum input power.Ĭonforms to relevant European Union directivesĬonforms to relevant Australian standards Looks for a signal every 3 seconds after the first detection. If no fiber is attached or if the connector is dirty, the troubleshooter displays 0 m or 0 ft.ĭetects optical signals from 600 nm to 1050 nm and shows ACTIVE LINE if a signal is there.
35 dB default threshold (User selectable: -20 dB to -45 dB in 5 dB increments)Ġ.70 dB default threshold (user-configurable from 0.5 dB to 6.1 dB in 0.2 dB increments) Removable/cleanable SC adapter, UPC polish ± (3 m + 0.1 % x length) for non-reflective incidents ± (1 m + 0.1 % x length) for reflective incidents1 Operating relative humidity (without condensation)
Specifications: Operating temperature with the battery Fiber QuickMap is perfect for datacenters and campus environments up to 1500m.Quickly confirm connectivity by verifying all the links and connections in your channel.Fiber QuickMap locates these problem areas.
Reflectance caused by end-face contamination or poor connections leads to bit errors. Locating potential sources of bit error rates. Fiber QuickMap points you to these incidents based on default or user-defined settings to fix them before they become bigger problems. Dirty connectors and poor splices can diminish network performance ﾖ or even cause network failure. Locating breaks or potential ﾓweakﾔ network cabling areas. No need to blindly waste time manipulating lasers or flashlights, then walking between both ends of the channel. Degraded network performance? Failed a loss test? Poorer than expected power or loss measurement? Fiber QuickMap helps you locate the source of the problem or eliminate cabling as the culprit. Fiber QuickMapﾒs one-button ease-of-use, speed and detailed insight into fiber connectivity make it the technicianﾒs troubleshooter of choice.įiber QuickMapﾙ provides immediate and in-depth visibility into your enterprise networkﾒs multimode fiber cabling, making it the perfect tool for: Today, network technicians need a first-line diagnostic tool to help them fix their fiber cabling problems. Of the spectrum, OTDRs work well as troubleshooters, but their advanced analysis and trace capabilities make them best used for certifying and documenting cable installation quality. Lasers are simple, but the repetitive process of shining it down a link and checking the far end is imprecise, tiresome and time-consuming. Other troubleshooting solutions in todayﾒs data centers are too inefficient and take up too much time. By instantly providing distances to failures such as high loss and high reflectance incidents, Fiber QuickMap is the must-have troubleshooter for any technician who works with fiber. The Fluke Networks Fiber QuickMap is an enterprise fiber troubleshooter that quickly and efficiently locates connections and breaks in multimode fiber.
